EGR VALVE REMOVAL/INSTALLATION [LF]
B3E011620300W01
1. Remove the plug hole plate.
2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Disconnect the negative battery cable.
4. Disconnect the EGR valve connector.

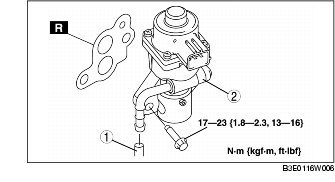

5. Remove in the order indicated in the table.
|
1
|
Water hose
(See Water Hose Removal Note [LF].)
|
|
2
|
EGR valve
(See EGR Valve Removal Note [LF].)
|
6. Install in the reverse order of removal.
Water Hose Removal Note [LF]
1. Drain the engine coolant from the radiator. (See ENGINE COOLANT REPLACEMENT [ZJ, Z6, LF].)
EGR Valve Removal Note [LF]
1. Remove the air cleaner and air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF].)
2. Remove the radiator hose (upper). (See RADIATOR REMOVAL/INSTALLATION [ZJ, Z6, LF].)
