Terminal
|
Signal
|
Connected to
|
Measurement condition
|
Voltage (V)/Continuity
|
Inspection item (s)
|
|---|
|
J-01 A
|
-
|
-
|
-
|
-
|
-
|
|
J-01 B
|
Power supply
|
Main fuse block
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-01 C
|
Headlight (RH) control
|
Headlight (RH) (low beam)
|
Light switch at headlight position
|
B+
|
• Headlight (RH) (low beam)
• Related wiring harnesses
|
|
Light switch off
|
1.0 or less
|
|
J-01 D
|
Headlight (LH) control
|
Headlight (LH) (low beam)
|
Light switch at headlight position
|
B+
|
• Headlight (LH) (low beam)
• Related wiring harnesses
|
|
Light switch off
|
1.0 or less
|
|
J-01 E
|
Windshield wiper motor control
|
Windshield wiper motor (high speed)
|
Wiper switch at high position
|
B+
|
• Windshield wiper motor
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-01 F
|
PJB power supply
|
Main fuse block
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-01 G
|
Blower relay, rear window defroster relay power supply
|
Blower relay, rear window defroster relay
|
Ignition switch at ON
|
B+
|
• Blower relay
• Rear window defroster relay
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-01 H
|
Back-up light power supply
|
Back-up light switch
|
Ignition switch at ON
|
B+
|
• Back-up light switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-01 I
|
Headlight cleaner relay power supply
|
Headlight cleaner relay
|
Ignition switch at ON
|
B+
|
• Headlight cleaner relay
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-01 J
|
-
|
-
|
-
|
-
|
-
|
|
J-01 K
|
Parking light (RH) control
|
Parking light (RH)
|
Ignition switch off
|
Light switch at TNS position
|
B+
|
• Parking light (RH)
• Related wiring harnesses
|
|
Light switch at OFF position
|
1.0 or less
|
|
J-01 L
|
Front turn light (RH) control
|
Front turn light (RH)
|
Turn switch (RH) on
|
Front turn light (RH) flashes
|
Alternates between 1.0 or less and B+
|
• Front turn light (RH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
|
Other
|
1.0 or less
|
|
J-01 M
|
High beam (RH) control
|
Headlight (RH) (high beam)
|
Ignition switch off
|
Light switch at high position or flash-to-pass
|
B+
|
• Headlight (RH) (high beam)
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-01 N
|
Heated outer mirror power supply
|
Rear window defroster relay
|
Rear window defroster switch on
|
B+
|
• Rear window defroster relay
• Related wiring harnesses
|
|
Rear window defroster switch off
|
1.0 or less
|
|
J-01 O
|
High beam (LH) control
|
Headlight (LH) (high beam)
|
Ignition switch off
|
Light switch at high position or flash-to-pass
|
B+
|
• Headlight (LH) (high beam)
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-01 P
|
-
|
-
|
-
|
-
|
-
|
|
J-01 Q
|
Power supply
|
Main fuse block
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-01 R
|
PJB power supply
|
Main fuse block
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-01 S
|
Front fog light relay power supply
|
Front fog light relay
|
Ignition switch off
|
Light switch at TNS position
|
B+
|
• Front fog light relay
• Related wiring harnesses
|
|
Light switch at OFF position
|
1.0 or less
|
|
J-01 T
|
-
|
-
|
-
|
-
|
-
|
|
J-01 U
|
-
|
-
|
-
|
-
|
-
|
|
J-01 V
|
Brake switch signal output
|
PCM
|
Brake pedal depressed
|
B+
|
• Brake switch
• PCM
• Related wiring harnesses
|
|
Brake pedal released
|
1.0 or less
|
|
J-01 W
|
-
|
-
|
-
|
-
|
-
|
|
J-01 X
|
-
|
-
|
-
|
-
|
-
|
|
J-01 Y
|
-
|
-
|
-
|
-
|
-
|
|
J-01 Z
|
-
|
-
|
-
|
-
|
-
|
|
J-01 AA
|
-
|
-
|
-
|
-
|
-
|
|
J-01 AB
|
-
|
-
|
-
|
-
|
-
|
|
J-01 AC
|
Parking light (LH) control
|
Parking light (LH)
|
Ignition switch off
|
Light switch at TNS position
|
B+
|
• Parking light (LH)
• Related wiring harnesses
|
|
Light switch at OFF position
|
1.0 or less
|
|
J-01 AD
|
-
|
-
|
-
|
-
|
-
|
|
J-01 AE
|
Back-up light switch signal
|
Back-up light switch
|
Ignition switch at ON
|
Transaxle in reverse
|
B+
|
• Back-up light switch
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-01 AF
|
-
|
-
|
-
|
-
|
-
|
|
J-01 AG
|
Windshield washer motor control
|
Windshield washer motor
|
Ignition switch at ON
|
Windshield washer switch on
|
B+
|
• Windshield washer motor
• Related wiring harnesses
|
|
Windshield washer switch off
|
1.0 or less
|
|
J-01 AH
|
Rear window defroster relay control
|
Rear window defroster relay
|
Ignition switch at ON
|
Rear window defroster switch on
|
1.0 or less
|
• Rear window defroster relay
• Related wiring harnesses
|
|
Rear window defroster switch off
|
B+
|
|
J-01 AI
|
Autostop switch signal
|
Autostop switch
|
Ignition switch at ON
|
Windshield wiper moving
|
B+
|
• Autostop switch (windshield wiper motor)
• Related wiring harnesses
|
|
Windshield wiper stopped
|
1.0 or less
|
|
J-01 AJ
|
-
|
-
|
-
|
-
|
-
|
|
J-01 AK
|
Front turn light (LH) control
|
Front turn light (LH)
|
Turn switch (LH) on
|
Front turn light (LH) flashes
|
Alternates between 1.0 or less and B+
|
• Front turn light (LH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
|
Other
|
1.0 or less
|
|
J-01 AL
|
Brake fluid level signal
|
Brake fluid level sensor
|
Ignition switch at ON
|
Brake fluid level above MIN.
|
B+
|
• Brake fluid level sensor
• Related wiring harnesses
|
|
Brake fluid level below MIN.
|
1.0 or less
|
|
J-01 AM
|
PJB power supply
|
Main fuse block
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-01 AN
|
-
|
-
|
-
|
-
|
-
|
|
J-01 AO
|
Windshield wiper motor control
|
Windshield wiper motor (low speed)
|
Wiper switch at low position
|
B+
|
• Windshield wiper motor
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-02 A
|
-
|
-
|
-
|
-
|
-
|
|
J-02 B
|
-
|
-
|
-
|
-
|
-
|
|
J-02 C
|
-
|
-
|
-
|
-
|
-
|
|
J-02 D
|
-
|
-
|
-
|
-
|
-
|
|
J-02 E
|
-
|
-
|
-
|
-
|
-
|
|
J-02 F
|
-
|
-
|
-
|
-
|
-
|
|
J-02 G
|
-
|
-
|
-
|
-
|
-
|
|
J-02 H
|
-
|
-
|
-
|
-
|
-
|
|
J-02 I
|
-
|
-
|
-
|
-
|
-
|
|
J-02 J
|
-
|
-
|
-
|
-
|
-
|
|
J-02 K
|
-
|
-
|
-
|
-
|
-
|
|
J-02 L
|
-
|
-
|
-
|
-
|
-
|
|
J-02 M
|
-
|
-
|
-
|
-
|
-
|
|
J-02 N
|
-
|
-
|
-
|
-
|
-
|
|
J-02 O
|
-
|
-
|
-
|
-
|
-
|
|
J-02 P
|
-
|
-
|
-
|
-
|
-
|
|
J-02 Q
|
-
|
-
|
-
|
-
|
-
|
|
J-02 R
|
-
|
-
|
-
|
-
|
-
|
|
J-02 S
|
-
|
-
|
-
|
-
|
-
|
|
J-02 T
|
-
|
-
|
-
|
-
|
-
|
|
J-02 U
|
-
|
-
|
-
|
-
|
-
|
|
J-02 V
|
-
|
-
|
-
|
-
|
-
|
|
J-02 W
|
-
|
-
|
-
|
-
|
-
|
|
J-02 X
|
-
|
-
|
-
|
-
|
-
|
|
J-02 Y
|
Bonnet latch switch signal
|
Bonnet latch switch
|
Bonnet open
(Bonnet latch switch off)
|
B+
|
• Bonnet latch switch
• Related wiring harnesses
|
|
Bonnet closed
(Bonnet latch switch on)
|
1.0 or less
|
|
J-02 Z
|
Headlight cleaner relay control
|
Headlight cleaner relay
|
Headlight cleaner operating
|
1.0 or less
|
• Headlight cleaner relay
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-02 AA
|
-
|
-
|
-
|
-
|
-
|
|
J-02 AB
|
-
|
-
|
-
|
-
|
-
|
|
J-02 AC
|
-
|
-
|
-
|
-
|
-
|
|
J-02 AD
|

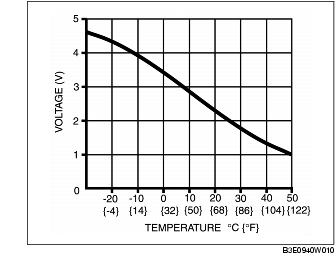

Ambient temperature sensor signal
|
Ambient temperature sensor
|
Depends on temperature surrounding sensor
|
|
• Ambient temperature sensor
• Related wiring harnesses
|
|
J-02 AE
|
Front fog light relay control
|
Front fog light relay
|
Front fog light switch on and light switch at TNS position
|
1.0 or less
|
• Front fog light relay
• Related wiring harnesses
|
|
Front fog light switch off
|
B+
|
|
J-02 AF
|
Sensor GND
|
Ambient temperature sensor
|
Under any condition: Inspect for continuity to ground.
|
Continuity detected
|
• Related wiring harnesses
|
|
J-03 A
|
-
|
-
|
-
|
-
|
-
|
|
J-03 B
|
Washer switch signal
|
Windshield wiper and washer switch
|
Ignition switch at ON
|
Washer switch on
|
B+
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Washer switch off
|
1.0 or less
|
|
J-03 C
|
PJB GND
|
Body ground
|
Under any condition: Inspect for continuity to ground.
|
Continuity detected
|
• Related wiring harnesses
|
|
J-03 D
|
-
|
-
|
-
|
-
|
-
|
|
J-03 E
|
-
|
-
|
-
|
-
|
-
|
|
J-03 F
|
-
|
-
|
-
|
-
|
-
|
|
J-03 G
|
-
|
-
|
-
|
-
|
-
|
|
J-03 H
|
Illumination power supply
|
Illumination bulb
|
Light switch at TNS position
|
B+
|
• Related wiring harnesses
|
|
Light switch at OFF position
|
1.0 or less
|
|
J-03 I
|
TNS signal
|
Light switch
|
Light switch at TNS position
|
1.0 or less
|
• Light switch
• Related wiring harnesses
|
|
Light switch at OFF position
|
B+
|
|
J-03 J
|
DLC-2 power supply
|
DLC-2
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-03 K
|
-
|
-
|
-
|
-
|
-
|
|
J-03 L
|
-
|
-
|
-
|
-
|
-
|
|
J-03 M
|
-
|
-
|
-
|
-
|
-
|
|
J-03 N
|
Washer motor power supply
|
• Windshield wiper and washer switch
• Rear washer motor
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 O
|
Seat warmer power supply
|
Seat warmer
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 P
|
Power supply
|
• Audio unit
• Keyless control module
• Car-navigation unit
• Ignition key illumination bulb
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-03 Q
|
Auto leveling control
|
Auto leveling control module
|
Light switch at headlight position
|
1.0 or less
|
• Auto leveling control module
• Related wiring harnesses
|
|
Light switch at OFF position
|
B+
|
|
J-03 R
|
Climate control unit power supply
|
Climate control unit
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-03 S
|
-
|
-
|
-
|
-
|
-
|
|
J-03 T
|
Power supply
|
• Instrument cluster
• Key interlock solenoid
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-03 U
|
-
|
-
|
-
|
-
|
-
|
|
J-03 V
|
-
|
-
|
-
|
-
|
-
|
|
J-03 W
|
Rear fog light control
|
Rear fog light
|
Rear fog light switch on
|
B+
|
• Rear fog light
• Related wiring harnesses
|
|
Rear fog light switch off
|
1.0 or less
|
|
J-03 X
|
PJB GND
|
Body ground
|
Under any condition: Inspect for continuity to ground.
|
Continuity detected
|
• Related wiring harnesses
|
|
J-03 Y
|
Power supply
|
Ignition switch
|
Ignition switch at ACC
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 Z
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AA
|
Power supply
|
• Audio unit
• Keyless control module
• Car-navigation unit
|
Ignition switch at ACC
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 AB
|
Ignition key illumination control
|
Ignition key illumination
|
Ignition switch off and driver-side door opened.
|
1.0 or less
|
• Ignition key illumination bulb
• Related wiring harnesses
|
|
15 s or more after driver-side door closed.
|
B+
|
|
J-03 AC
|
Power supply
|
Instrument cluster
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 AD
|
Power supply
|
Climate control unit
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 AE
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AF
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AG
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AH
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AI
|
Panel light control
|
Illumination bulb
|
Panel light control switch turned to the brightest setting
|
1.0 or less
|
• Each illumination bulb
• Related wiring harnesses
|
|
Panel light control switch turned to the darkest position
|
|
|
J-03 AJ
|
Panel light control input
|
Panel light control switch
|
Panel light control switch turned to the brightest setting
|
Approx. 4.5
|
• Panel light control switch
• Related wiring harnesses
|
|
Panel light control switch turned to the darkest position
|
1.0 or less
|
|
J-03 AK
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AL
|
Headlight leveling switch power supply
|
Headlight leveling switch
|
Light switch at headlight position
|
B+
|
• Headlight leveling switch
• Related wiring harnesses
|
|
Light switch at OFF position
|
1.0 or less
|
|
J-03 AM
|
SAS control module power supply
|
SAS control module
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 AN
|
Cigarette lighter power supply
|
Cigarette lighter
|
Ignition switch at ACC
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 AO
|
Power supply
|
Ignition switch
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 AP
|
Power supply
|
Ignition switch
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-03 AQ
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AR
|
-
|
-
|
-
|
-
|
-
|
|
J-03 AS
|
Headlight switch signal
|
Light switch
|
Light switch at headlight position
|
1.0 or less
|
• Light switch
• Related wiring harnesses
|
|
Light switch at OFF position
|
B+
|
|
J-03 AT
|
-
|
-
|
-
|
-
|
-
|
|
J-04 A
|
-
|
-
|
-
|
-
|
-
|
|
J-04 B
|
CAN_L
|
-
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
-
|
• Related wiring harnesses
|
|
J-04 C
|
Windshield wiper switch signal (high)
|
Windshield wiper and washer switch
|
Ignition switch at ON
|
Windshield wiper switch at high position
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 D
|
CAN_H
|
-
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
-
|
• Related wiring harnesses
|
|
J-04 E
|
Sensitivity adjustment volume
|
Windshield wiper and washer switch
|
Ignition switch at ON
|
Sensitivity adjustment volume turned from + position to - position
|
0 → 0.8 → 1.5 → 2.5 → 2.7
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
J-04 F
|
Keyless entry signal
|
Keyless control module
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
-
|
• Keyless control module
• Related wiring harnesses
|
|
J-04 G
|
Windshield wiper switch signal (low)
|
Windshield wiper and washer switch
|
Ignition switch at ON
|
Windshield wiper switch at low position
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 H
|
-
|
-
|
-
|
-
|
-
|
|
J-04 I
|
Rear window defroster signal
|
Climate control unit
|
Rear window defroster switch on
|
1.0 or less
|
• Climate control unit
• Related wiring harnesses
|
|
Rear window defroster switch off
|
B+
|
|
J-04 J
|
-
|
-
|
-
|
-
|
-
|
|
J-04 K
|
Turn switch input (RH)
|
Turn switch
|
Ignition switch at ON
|
Turn switch at right position
|
1.0 or less
|
• Turn switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 L
|
Headlight switch signal (high beam)
|
Light switch
|
Light switch at high position or flash-to-pass
|
1.0 or less
|
• Light switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 M
|
-
|
-
|
-
|
-
|
-
|
|
J-04 N
|
-
|
-
|
-
|
-
|
-
|
|
J-04 O
|
Turn switch input (LH)
|
Turn switch
|
Ignition switch at ON
|
Turn switch at left position
|
1.0 or less
|
• Turn switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 P
|
-
|
-
|
-
|
-
|
-
|
|
J-04 Q
|
-
|
-
|
-
|
-
|
-
|
|
J-04 R
|
Rear wiper switch signal (on)
|
Rear wiper and washer switch
|
Ignition switch at ON
|
Rear wiper and washer switch at ON position
|
1.0 or less
|
• Rear wiper and washer switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 S
|
Rear wiper switch signal (INT)
|
Rear wiper and washer switch
|
Ignition switch at ON
|
Rear wiper and washer switch at INT position
|
1.0 or less
|
• Rear wiper and washer switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 T
|
-
|
-
|
-
|
-
|
-
|
|
J-04 U
|
Windshield wiper switch signal (INT)
|
Windshield wiper switch
|
Ignition switch at ON
|
Windshield wiper switch at INT position
|
1.0 or less
|
• Windshield wiper switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 V
|
-
|
-
|
-
|
-
|
-
|
|
J-04 W
|
Front fog light switch signal
|
Front fog light switch
|
Front fog light switch on
|
1.0 or less
|
• Fog light switch
• Related wiring harnesses
|
|
Front fog light switch off
|
B+
|
|
J-04 X
|
-
|
-
|
-
|
-
|
-
|
|
J-04 Y
|
-
|
-
|
-
|
-
|
-
|
|
J-04 Z
|
Rear fog light switch signal
|
Rear fog light switch
|
Rear fog light switch on
|
1.0 or less
|
• Rear fog light switch
• Related wiring harnesses
|
|
Rear fog light switch off
|
B+
|
|
J-04 AA
|
-
|
-
|
-
|
-
|
-
|
|
J-04 AB
|
Parking brake switch signal
|
Parking brake switch
|
Ignition switch at ON
|
Parking brake switch on
|
1.0 or less
|
• Parking brake switch
• Related wiring harnesses
|
|
Parking brake switch off
|
B+
|
|
J-04 AC
|
Hazard warning switch signal
|
Hazard warning switch
|
Hazard warning switch on
|
1.0 or less
|
• Hazard warning switch
• Related wiring harnesses
|
|
Hazard warning switch off
|
B+
|
|
J-04 AD
|
Rear window defroster signal
|
Climate control unit
|
Rear window defroster switch is pressed
|
1.0 or less
|
• Climate control unit
• Related wiring harnesses
|
|
Rear window defroster switch is released
|
B+
|
|
J-04 AE
|
Light switch signal (AUTO)
|
Light switch
|
Ignition switch at ON
|
Light switch at AUTO position
|
1.0 or less
|
• Light switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-04 AF
|
A/C operation signal
|
Climate control unit
|
A/C operating
|
1.0 or less
|
• Climate control unit
• Related wiring harnesses
|
|
A/C not operating
|
B+
|
|
J-05 A
|
Rear turn light (LH) control
|
Rear turn light (LH)
|
Turn switch (LH) on
|
Rear turn light (LH) flashes
|
Alternates between 1.0 or less and B+
|
• Rear turn light (LH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
|
Other
|
1.0 or less
|
|
J-05 B
|
-
|
-
|
-
|
-
|
-
|
|
J-05 C
|
Back-up light control
|
Back-up light
|
Ignition switch at ON
|
Transaxle in reverse
|
B+
|
• Back-up light
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-05 D
|
-
|
-
|
-
|
-
|
-
|
|
J-05 E
|
Power outer mirror power supply
|
Power outer mirror
|
Ignition switch at ACC
|
B+
|
• Power outer mirror
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-05 F
|
Sunroof power supply
|
Sunroof
|
Under any condition
|
B+
|
• Sunroof
• Related wiring harnesses
|
|
J-05 G
|
Tail light (LH) control
|
Tail light (LH)
|
Light switch at TNS position
|
B+
|
• Tail light (LH)
• Related wiring harnesses
|
|
Light switch at OFF position
|
1.0 or less
|
|
J-05 H
|
Rain sensor GND
|
Rain sensor
|
Under any condition: Inspect for continuity to ground.
|
Continuity detected
|
• Related wiring harnesses
|
|
J-05 I
|
Auto stop switch signal
|
Rain sensor
|
Windshield wiper moving
|
B+
|
• Auto stop switch (windshield wiper motor)
• Rain sensor
• Related wiring harnesses
|
|
Windshield wiper stopped
|
1.0 or less
|
|
J-05 J
|
Trunk lid unlock control
|
Trunk lid unlock actuator
|
Trunk lid unlock actuator unlocking
|
1.0 or less → B+ → 1.0 or less
|
• Trunk lid unlock actuator
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-05 K
|
Power window power supply
|
Power window main switch
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-05 L
|
-
|
-
|
-
|
-
|
-
|
|
J-05 M
|
Brake switch signal
|
Brake switch
|
Brake pedal depressed
|
B+
|
• Brake switch
• Related wiring harnesses
|
|
Brake pedal released
|
1.0 or less
|
|
J-05 N
|
Double lock control
|
Door lock actuator
|
Lock actuator double-locking (Transmitter LOCK button pressed twice within 5 s)
|
1.0 or less → B+ → 1.0 or less
|
• Door lock actuator
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-05 O
|
Power window power supply
|
Power window main switch
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-05 P
|
-
|
-
|
-
|
-
|
-
|
|
J-05 Q
|
-
|
-
|
-
|
-
|
-
|
|
J-05 R
|

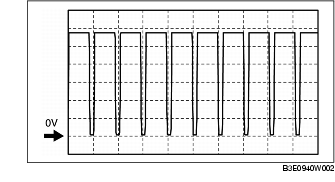

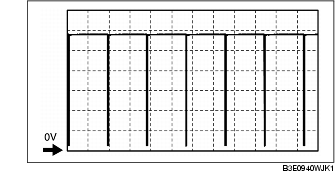

Intruder sensor signal
|
Intruder sensor
|
Theft-deterrent system arming
|
|
• Intruder sensor
• Related wiring harnesses
|
|
J-05 S
|
Interior light power supply
|
• Map light
• Interior light
• Trunk compartment light
• Cargo compartment light
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-05 T
|
Rain sensor power supply
|
Rain sensor
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-05 U
|
Interior light control
|
• Map light
• Interior light
|
Within 5 min after any door is opened.
|
1.0 or less
|
• Map light
• Interior light
• Related wiring harnesses
|
|
5 min or more after any door is opened.
|
B+
|
|
All doors closed
|
1.0 or less
|
|
J-05 V
|
-
|
-
|
-
|
-
|
-
|
|
J-05 W
|
-
|
-
|
-
|
-
|
-
|
|
J-05 X
|
-
|
-
|
-
|
-
|
-
|
|
J-05 Y
|
Door unlock control
|
Door lock actuator
|
Door lock actuator unlocking
|
1.0 or less → B+ → 1.0 or less
|
• Door lock actuator
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-05 Z
|
Heated outer mirror control
|
Heated outer mirror
|
Rear window defroster switch on
|
B+
|
• Heated outer mirror
• Related wiring harnesses
|
|
Rear window defroster switch off
|
1.0 or less
|
|
J-05 AA
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AB
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AC
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AD
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AE
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AF
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AG
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AH
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AI
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AJ
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AK
|
Rear turn light (RH) control
|
Rear turn light (RH)
|
Turn switch (RH) on
|
Rear turn light (RH) flashes
|
Alternates between 1.0 or less and B+
|
• Rear turn light (RH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
|
Other
|
1.0 or less
|
|
J-05 AL
|
Sunroof power supply
|
Sunroof
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-05 AM
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AN
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AO
|
-
|
-
|
-
|
-
|
-
|
|
J-05 AP
|
Door lock control
|
Door lock actuator
|
Door lock actuator locking
|
1.0 or less → B+ → 1.0 or less
|
• Door lock actuator
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-05 AQ
|
Power supply
|
Theft-deterrent siren
|
Under any condition
|
B+
|
• Related wiring harnesses
|
|
J-05 AR
|
Rear wiper control
|
Rear wiper motor
|
Rear wiper moving
|
B+
|
• Rear wiper motor
• Related wiring harnesses
|
|
Rear wiper stopped
|
1.0 or less
|
|
J-05 AS
|
Tail light (RH) control
|
Tail light (RH)
|
Light switch at TNS position
|
B+
|
• Tail light (RH)
• Related wiring harnesses
|
|
Light switch at OFF position
|
1.0 or less
|
|
J-05 AT
|
Rear wiper power supply
|
Rear wiper motor
|
Ignition switch at ON
|
B+
|
• Rear wiper motor
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|
J-06 A
|
-
|
-
|
-
|
-
|
-
|
|
J-06 B
|
-
|
-
|
-
|
-
|
-
|
|
J-06 C
|
-
|
-
|
-
|
-
|
-
|
|
J-06 D
|
-
|
-
|
-
|
-
|
-
|
|
J-06 E
|
-
|
-
|
-
|
-
|
-
|
|
J-06 F
|
-
|
-
|
-
|
-
|
-
|
|
J-06 G
|
-
|
-
|
-
|
-
|
-
|
|
J-06 H
|
-
|
-
|
-
|
-
|
-
|
|
J-06 I
|
-
|
-
|
-
|
-
|
-
|
|
J-06 J
|
-
|
-
|
-
|
-
|
-
|
|
J-06 K
|
-
|
-
|
-
|
-
|
-
|
|
J-06 L
|
-
|
-
|
-
|
-
|
-
|
|
J-06 M
|
Intruder sensor power supply
|
Intruder sensor
|
Theft-deterrent system pre-arming or arming
|
B+
|
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|
J-06 N
|
Intruder sensor GND
|
Intruder sensor
|
Under any condition: Inspect for continuity to ground.
|
Continuity detected
|
• Related wiring harnesses
|
|
J-06 O
|
Door status
|
Power window main switch
|
All doors closed
|
B+
|
• Door switch
• Power window main switch
• Related wiring harnesses
|
|
Any door opened
|
1.0 or less
|
|
J-06 P
|
Trunk lid lock/unlock signal
|
Trunk lid key cylinder switch
|
At the moment key cylinder is unlocked
|
1.0 or less
|
• Trunk lid key cylinder switch
• Related wiring harnesses
|
|
At the moment key cylinder is locked
|
Approx. 3
|
|
Key cylinder at neutral position
|
B+
|
|
J-06 Q
|
Rear door latch switch (RH) signal
|
Rear door latch switch (RH)
|
Rear door (RH) open
(Rear door latch switch (RH) off)
|
B+
|
• Rear door latch switch (RH)
• Related wiring harnesses
|
|
Rear door (RH) closed
(Rear door latch switch (RH) on)
|
1.0 or less
|
|
J-06 R
|
Intruder sensor signal
|
Intruder sensor
|
Theft-deterrent system pre-arming, arming, or alarm
|
B+
|
• Intruder sensor
• Related wiring harnesses
|
|
Intruder sensor detects intrusion
|
B+ → 1.0 or less → B+
|
|
Theft-deterrent system: Other
|
1.0 or less
|
|
J-06 S
|
Rear door latch switch (LH) signal
|
Rear door latch switch (LH)
|
Rear door (LH) open
(Rear door latch switch (LH) off)
|
B+
|
• Rear door latch switch (LH)
• Related wiring harnesses
|
|
Rear door (LH) closed
(Rear door latch switch (LH) on)
|
1.0 or less
|
|
J-06 T
|
-
|
-
|
-
|
-
|
-
|
|
J-06 U
|
Front door latch switch (RH) signal
|
Front door latch switch (RH)
|
Front door (RH) open
(Front door latch switch (RH) off)
|
B+
|
• Front door latch switch (RH)
• Related wiring harnesses
|
|
Front door (RH) closed
(Front door latch switch (RH) on)
|
1.0 or less
|
|
J-06 V
|
Unlock input (Driver-side door lock-link switch)
|
Driver-side door lock-link switch
|
Driver-side door locked
|
B+
|
• Driver-side door lock-link switch
• Related wiring harnesses
|
|
Driver-side door unlocked
|
1.0 or less
|
|
J-06 W
|
Front door latch switch (LH) signal
|
Front door latch switch (LH)
|
Front door (LH) open
(Front door latch switch (LH) off)
|
B+
|
• Front door latch switch (LH)
• Related wiring harnesses
|
|
Front door (LH) closed
(Front door latch switch (LH) on)
|
1.0 or less
|
|
J-06 X
|
Liftgate latch switch signal
|
Liftgate latch switch
|
Liftgate is open.
(Liftgate latch switch on)
|
1.0 or less
|
• Liftgate latch switch
• Related wiring harnesses
|
|
Liftgate is closed.
(Liftgate latch switch off)
|
B+
|
|
J-06 Y
|
Lock input (Driver-side door key cylinder switch)
|
Driver-side door key cylinder switch
|
At the moment key cylinder is locked
|
1.0 or less
|
• Driver-side door key cylinder switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-06 Z
|
Trunk lid latch switch signal
|
Trunk lid latch switch
|
Trunk lid open
(Trunk lid latch switch on)
|
1.0 or less
|
• Trunk lid latch switch
• Related wiring harnesses
|
|
Trunk lid closed
(Trunk lid latch switch off)
|
B+
|
|
J-06 AA
|
Unlock input (Driver-side door key cylinder switch)
|
Driver-side door key cylinder switch
|
At the moment key cylinder is unlocked
|
1.0 or less
|
• Driver-side door key cylinder switch
• Related wiring harnesses
|
|
Other
|
B+
|
|
J-06 AB
|
Trunk lid open request signal
|
Trunk lid key cylinder push switch
|
Trunk lid key cylinder push switch pressed
|
1.0 or less
|
• Trunk lid key cylinder push switch
• Related wiring harnesses
|
|
Trunk lid key cylinder push switch released
|
B+
|
|
J-06 AC
|
Lock input (Driver-side door lock-link switch)
|
Driver-side door lock-link switch
|
Driver-side door locked
|
1.0 or less
|
• Driver-side door lock-link switch
• Related wiring harnesses
|
|
Driver-side door unlocked
|
B+
|
|
J-06 AD
|
Wiper or headlight operation request
|
Rain sensor
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
-
|
• Rain sensor
• Related wiring harnesses
|
|
J-06 AE
|
-
|
-
|
-
|
-
|
-
|
|
J-06 AF
|
-
|
-
|
-
|
-
|
-
|
