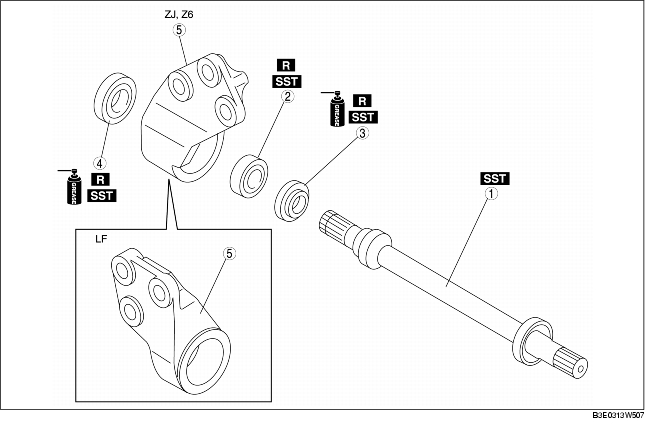

JOINT SHAFT DISASSEMBLY/ASSEMBLY [ZJ, Z6, LF]

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

Joint Shaft Disassembly Note

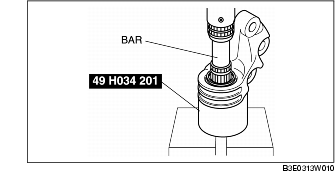

1. Remove the joint shaft using a press.

Bearing Disassembly Note

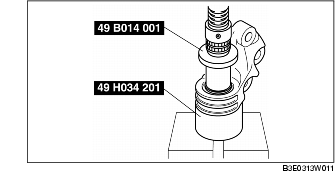

1. Remove the bearing and the dust seal (RH/LH) using the SSTs.

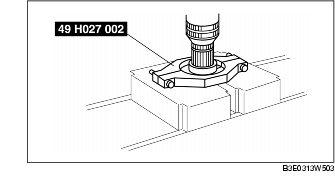

2. If the bearing remains on the joint shaft, set the SST and joint shaft to the press.

Dust Seal (RH) Assembly Note

1. Apply grease to a new dust seal lip.

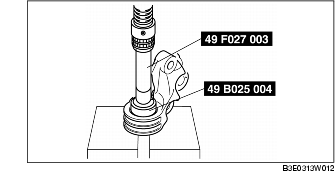

2. Install the dust seal (RH) using the SSTs.

Bearing Assembly Note

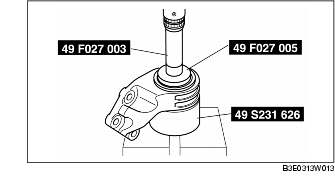

1. Install a new bearing using the SSTs.

Dust Seal (LH) Assembly Note

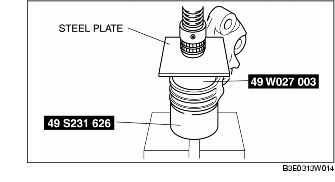

1. Apply grease to a new dust seal lip.

2. Install a new dust seal (LH) using the steel plate and the SSTs.

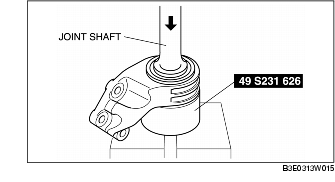

Joint Shaft Assembly Note

1. Press fit the joint shaft using the SST and a press.
