BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)]

B3E011718520W05

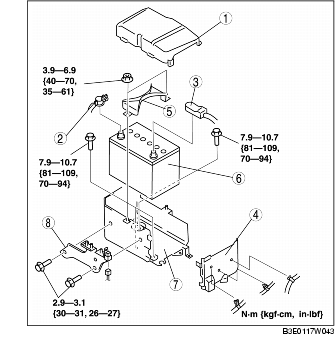

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.


1	Battery cover (See Battery Cover Installation Note.)
2	Negative battery cable
3	Positive battery cable
4	Battery box (See Battery Box Installation Note.)
5	Battery clamp
6	Battery
7	Battery tray
8	Relay bracket

Battery Box Installation Note

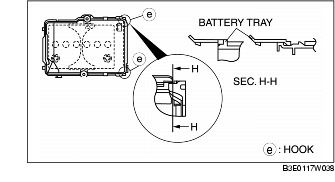

1. Assemble with battery box hooks E aligned with the battery tray holes at two points.

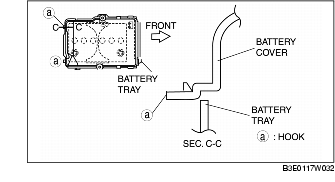

1. Install with battery cover hooks A aligned with the battery tray holes at two points.

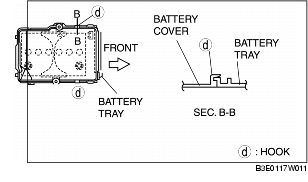

2. Install with battery cover hooks D aligned with the battery tray flange at two points.

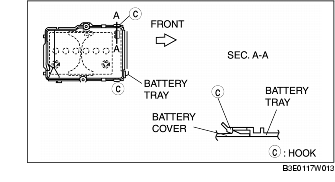

3. Set the battery cover to battery tray hooks C at two points.
