FUEL SYSTEM LOCATION INDEX [ZJ, Z6, LF]

B3E011401006W01

Engine Compartment Side

ZJ, Z6

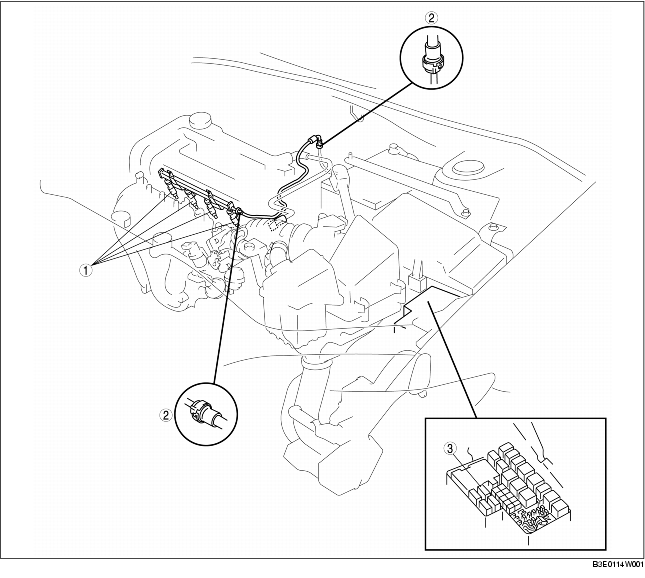

1	Fuel injector (See	2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZJ, Z6, LF].)
3	Fuel pump relay

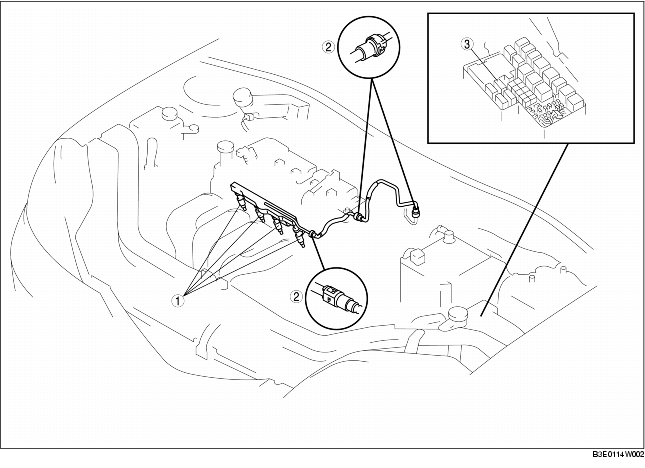

1	Fuel injector
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZJ, Z6, LF].)
3	Fuel pump relay

Without the fuel filter (high-pressure)

With the fuel filter (high-pressure)

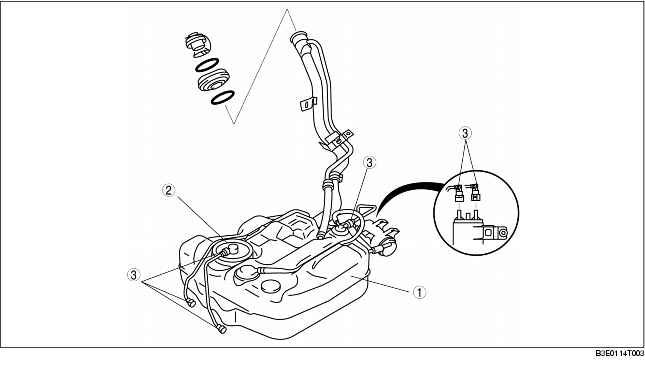

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [ZJ, Z6, LF].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [ZJ, Z6, LF].)
3	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZJ, Z6, LF].)
4	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [ZJ, Z6, LF].)
