FRONT COMBINATION LIGHT CONSTRUCTION
B3E091851060T01
• A headlight with built-in front turn light and parking light has been adopted for design improvement.
• Projector type headlights have been adopted, and these have been incorporated, along with the front turn light and the parking light, into a single unit to reduce size.
• Discharge headlights, with a wide illumination area and projection of white light with a hue similar to sunlight, have been adopted.
|

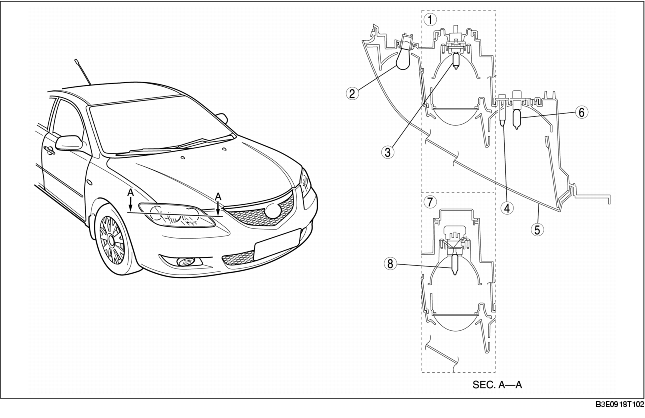

1
|
Halogen type
|
|
2
|
Front turn light bulb
|
|
3
|
Headlight bulb (LO)
|
|
4
|
Parking light bulb
|
|
5
|
Front combination light
|
|
6
|
Headlight bulb (HI)
|
|
7
|
Discharge type
|
|
8
|
Discharge headlight bulb (LO)
|
Projector-type Headlight
• Light emitted from the first focal point is projected off the reflector, gathered at the second focal point, and output through the convex lens.
