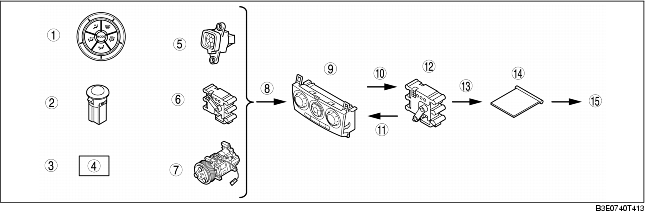

AIRFLOW MODE CONTROL SYSTEM DIAGRAM

B3E074061190T10


1	Each mode switchs
2	Solar radiation amount
3	Engine coolant temperature
4	ECT sensor
5	Cabin temperature
6	Air mix actuator temperature opening degree
7	A/C compressor control condition
8	Signal
9	Climate control unit
10	Output
11	Feedback
12	Airflow mode actuator
13	Operation
