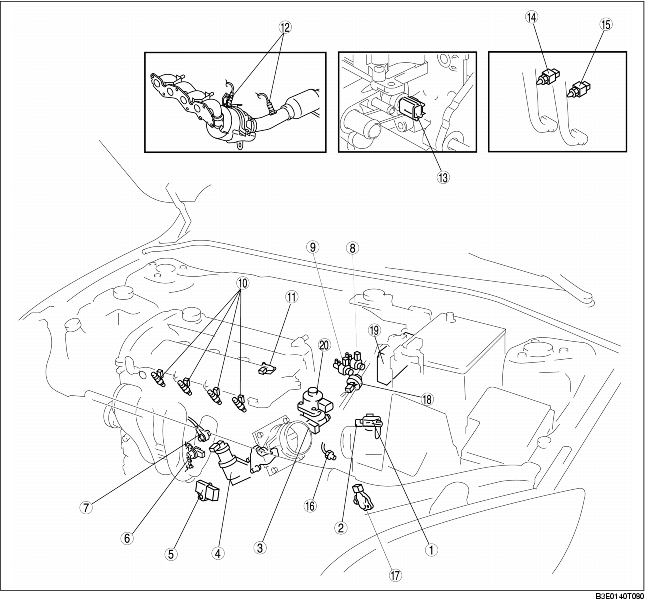

ENGINE CONTROL SYSTEM STRUCTURAL VIEW [LF]

B3E014018881T02


1	MAF/IAT sensor
2	BARO sensor
3	TP sensor
4	IAC valve
5	MAP sensor
6	CKP sensor
7	KS
8	Variable tumble solenoid valve
9	Variable intake-air solenoid valve
10	Fuel injector
11	CMP sensor
12	HO2S (front, rear)
13	ECT sensor
14	Brake switch
15	CPP switch (MTX)
16	Neutral switch (MTX)
17	TR switch (ATX)
18	Purge valve
19	PCM
20	EGR valve
