FUEL FILTER CONSTRUCTION/OPERATION [MZ-CD 1.6 (Y6)]
B3E011420490T01
• The fuel filter is attached directly to the cylinder head via a bracket and is equipped with an electric fuel pre-heating system.
• The fuel lines are each secured by means of a quick-release coupling on the connections.
• The fuel lines are color coded, with white for the supply from the fuel tank and red for the outlet to the fuel pump.
• The water separator must be drained using the drain plug on a regular basis in accordance with the maintenance instructions.
|

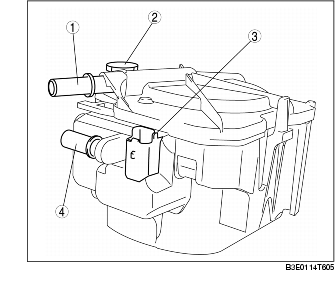

1
|
Outlet to the high-pressure fuel pump
|
|
2
|
Drain plug
|
|
3
|
Fuel warmer connector
|
|
4
|
Supply from the fuel tank
|
